MACROTHERM BUILDING & INDUSTRIAL WIRES
CONFIRMING TO IS:694-2010 & BS 6004

PRODUCT DESCRIPTION

PVC Insulated Building Wires for domestic & commercial applications, fixed laying & flexible applications, as per Indian & International standards.

APPLICABLE STANDARD

IS 694:2010 & SB 6004

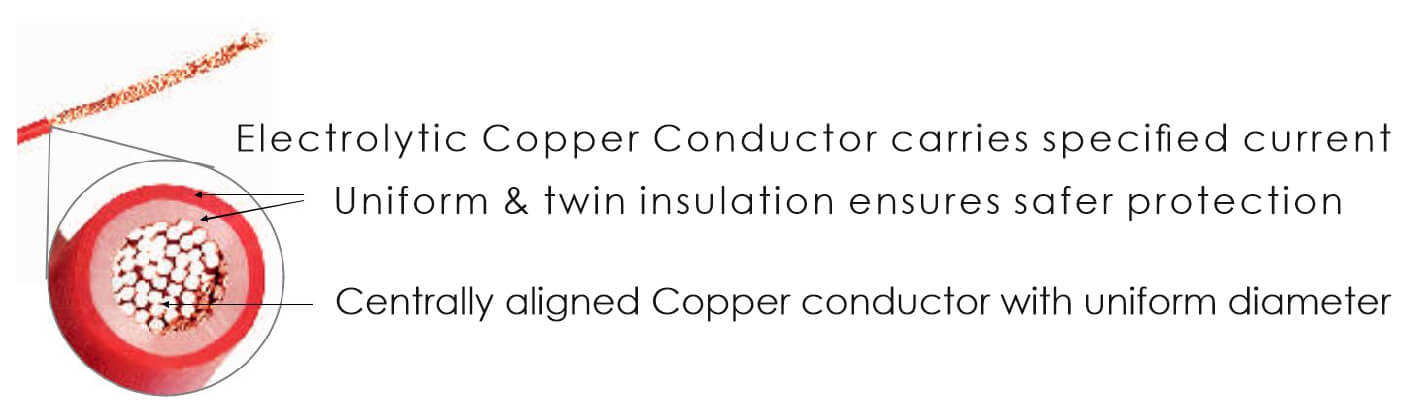

CONSTRUCTION

CONDUCTOR

Manufactured using 99.97% pure electrolytic grade bright annealed bare copper, ensuring min. energy losses - greater saving of electrical energy. Conductor, Class 2 & Class 5, as per IS 8130 / BS 6360, made of multiple strands of finely drawn copper wires, offering greater flexibility & making routing of wires easy.

INSULATION

Co-extruded Insulation with specially formulated PVC compound with high Insulation Resistance & Di-electric Strength for better electrical properties, as per IS:5831& international standards.

FEATURES

Online wire drawing with annealing
Co-extruded PVC Insulation, for better Insulation & Electrical properties
Online High Voltage Spark Testing, ensures no weak spots in wires
Automatic on-line critical diameter control
Stringent Quality Control
BIS marked

Annealed bare Copper Conductor, PVC Insulated Wire,1100 V Grade, as per IS 694:2010.

CONDUCTOR		INSULATION		MAX. CR at 20^oC Ω/Km	Current Carrying Capacity - Amps. (2 Wires Single Phase)
AREA mm²	CONSTRUCTION Nos. - Size	THICKNESS mm	DIA. mm	MAX. CR at 20^oC Ω/Km	In conduit / Trunking	Un-enclosed, clipped directly to surface or on cable tray
0.50	16/0.20 **	0.6	2.1	39	4	5
0.75	24/0.20 **	0.6	2.3	26	6	7
1.0	14/0.30 *	0.7	2.7	18.1	11	12
1.0	32/0.20**	0.6	2.7	19.5	11	12
1.5	22/0.30 *	0.7	3.0	12.1	13	16
1.5	30/0.25, 48/0.20 **	0.7	3.0	13.3	13	16
2.5	36/0.30 *	0.8	3.6	7.41	18	22
2.5	50/0.25, 80/0.20 **	0.8	3.6	7.98	18	22
4	56/0.30 **	0.8	4.1	4.95	24	29
6	84/0.30 **	0.8	4.7	3.30	31	37

* Conductor construction as per IS 8130 Class 2
** Conductor construction as per IS 8130 Class 5
# Current carrying capacity as per IS 3961 Part V – 1968

Standard Colors : Red, Yellow, Blue, Black & Green (for earthing)
Packing : Supplied in 90/100 meter coils or as per Customer’s requirement

The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.

APROX. WIRE SELECTION CHART FOR DOMESTIC LOADS*

SR.NO.	APPLIANCE	APROX. LOAD / WATTAGE	MCB RATING	RECOMMENDED WIRE SIZE
1	Fan	60 W		1 mm²
2	Lamp, Tube light	40 W		1 mm²
3	Room Heater	200 W	1 A	1.5 mm²
4	Water Heater 8 Liters 15 Liters 60 Liters	1200 ~ 2000 W 3000 ~ 4000 W 4000 ~ 6000 W	10 A 20 A 32 A	2.5 mm² 4 mm² 6 mm²
5	Immersion Heater	1000 W	6 A	1.5 mm²
6	Hot Plate – Single	1000 W	6 A	1.5 mm²
7	Iron Normal Automatic	500 W 1000 W	3 A 6 A	1.5 mm² 1.5 mm²
8	Mixer / Juicer	300 W	2 A	1.5 mm²
9	TV / DVD Player	200 W	1 A	1.5 mm²
10	Music System	200 W	1 A	1.5 mm²
11	Water Heater 8 Liters 15 Liters 60 Liters	400 W 600 W 750 W	3 A 4 A 6 A	1.5 mm² 1.5 mm² 1.5 mm²
12	Toaster	500 W	3 A	1.5 mm²
13	Vacuum Cleaner	400 W	3 A	1.5 mm²
14	Washing Machine Without Dryer With Dryer	300 ~ 1300 W 5000 ~ 6300 W	10 A 32 A	2.5 mm² 6 mm²
15	Water Cooler	700 W	6 A	1.5 mm²
16	Desert Cooler	300 W	2 A	1.5 mm²
17	Oven	750 W	6 A	1.5 mm²
18	Electric Kettle	1500 W	7.5 A	1.5 mm²
19	Air Conditioner	1.0 TOn 1.5 Ton 2.0 Ton	10 A 16 A 16 A	2.5 mm² 4 mm² 4 mm²
20	Hair Dryer	1000 W	7.5 A	1.5 mm²
21	Microwave	800 W	6 A	1.5 mm²

Formula for Calculation Incomer Rating

Single Phase (Amps.) = Total Load (Watts) / 230 Volts *Cos ϕ
Three Phase (Amps.) = Total Load (Watts) / √3 * 230 Volts *Cos ϕ

* The above data is only for guidance and may vary from manufacturer to manufacturer. The proper load of appliance should be checked for current requirement & appropriate Wire & MCB size should be selected accordingly.

MAX. NO. OF CABLES THAT CAN BE ACCOMODATED IN A CONDUIT

CABLE SIZE	MAX. NO. OF CABLES IN PVC CONDUIT PIPES
CABLE SIZE	16 mm (5/8”)	20 mm (3/4”)	25 mm (1”)	30 mm (11/4”)
1 mm²	16 mm (5/8”)	20 mm (3/4”)	25 mm (1”)	30 mm (11/4”)	6 Nos.	7 Nos.	19 Nos.	30 Nos.
1.5 mm²	5 Nos.	5 Nos.	15 Nos.	24 Nos.
2.5 mm²	3 Nos.	4 Nos.	11 Nos.	17 Nos.
4 mm²	2 Nos.	3 Nos.	8 Nos.	13 Nos.
6 mm²	2 Nos.	2 Nos.	6 Nos.	10 Nos.

The human body's reaction to electric shock - Electrical shocks, passing through the human body, confuses its internal nervous system and it causes the body to react to the passage of current through it as follows:

CURRENT	REACTION
Below 1 Amp.	Generally not perceptible
1 mA	Faint Tingle
5 mA	Slight shock felt. Not painful but disturbing. Average individual can let go. Strong involuntary reactions can lead to other injuries
6 ~ 25 mA (Women)	Painful shocks. Loss of muscle control
9 ~ 30 mA (Men)	The freezing current or “let go” range. If extensor muscles are excited by shock, the person may be thrown away from the power source. Individuals cannot let go. Strong involuntary reactions can lead to other injuries
50 ~ 150 mA	Extreme pain, respiratory arrest, severe muscle reactions. Death is possible
1 ~ 4.3 Amps.	Rhythmic pumping action of the heart ceases. Muscular contraction and nerve damage occur; death is likely
10 Amps.	Cardiac arrest, severe burns, death is probable
