Panel Wires

Leading Panel Wires Manufacturing Company | Quality & Reliability in Every Wire

MACROTHERM PANEL WIRES CONFIRMING TO IS:694-2010 & BS 6004
PRODUCT DESCRIPTION

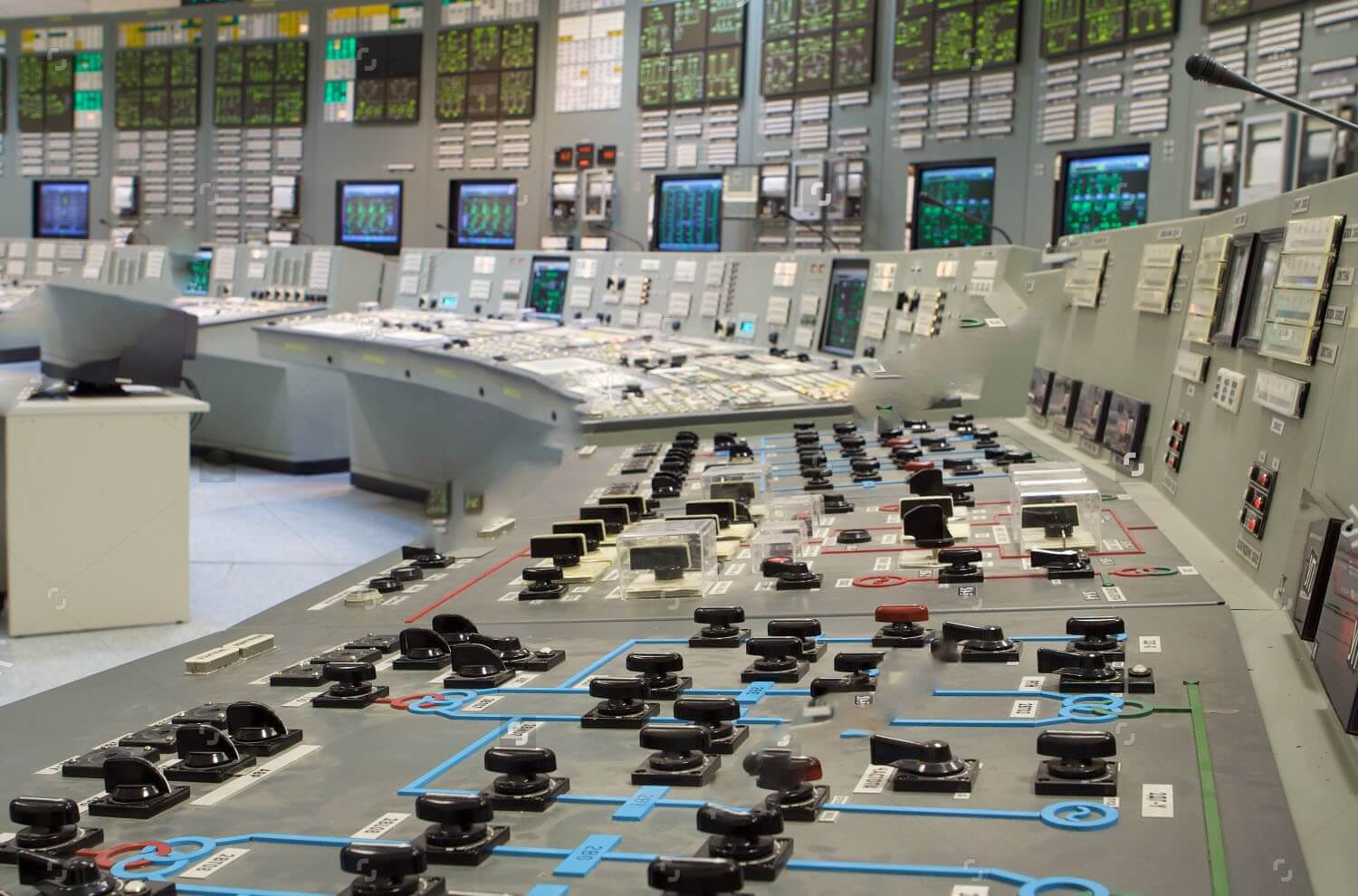

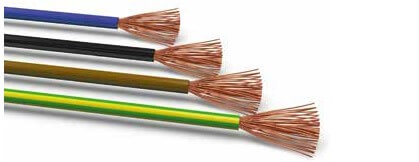

PVC Insulated Panel Wires used in switch-gears & control panels, as per Indian & International standards.

APPLICABLE STANDARD

EN 50214, IEC 60227-6

CONSTRUCTION
CONDUCTOR
Manufactured using 99.97% pure electrolytic grade bright annealed bare copper, ensuring min. energy losses - greater saving of electrical energy. Conductor, Class 2 & Class 5, as per IS 8130 /BS 6360, made of multiple strands of finely drawn copper wires, offering greater flexibility & making routing of wires easy.
INSULATION
Insulated with specially formulated Type A, C & D PVC compounds, giving extra protection against electric shocks, short circuits. This special compound also has high Insulation Resistance & Di-electric Strength, with better electrical properties, as per IS:5831& international standards.
FEATURES

Online wire drawing with annealing
Co-extruded PVC Insulation, for better Insulation & Electrical properties
Online High Voltage Spark Testing, ensures no weak spots in wires
Automatic on-line critical diameter control
Stringent Quality Control
BIS marked

Annealed bare Copper Conductor, PVC Insulated Wire,1100 V Grade as per IS 694:2010.

CONDUCTOR INSULATION MAX. CR at 20oC
Ω/Km		 Current Carrying Capacity - Amps.
(2 Wires Single Phase)
AREA
mm2		 CONSTRUCTION
Nos. - Size		 THICKNESS
mm		 DIA.
mm
0.50 16/0.20 0.6 2.1 39 5
0.75 24/0.20 0.6 2.3 26 7
1.0 32/0.20 0.6 2.4 19.5 12
1.5 30/0.25 0.6 2.7 13.3 16
2.5 50/0.25 0.7 3.4 7.98 22
4 56/0.30 0.8 4.0 4.95 29
6 84/0.30 0.8 4.6 3.30 37
10 80/0.40 1.0 6.0 1.91 51
16 126/0.40 1.0 7.0 1.21 68
25 196/0.40 1.2 8.7 0.780 86
35 276/0.40 1.2 9.6 0.554 110
50 396/0.40 1.4 11.7 0.386 145
70 360/0.50 1.4 13.5 0.272 215
95 484/0.50 1.6 15.5 0.206 260
120 608/0.50 1.6 17.0 0.161 305
150 750/0.50 1.8 19.0 0.129 355
185 925/0.50 2.0 21.0 0.106 415
240 1210/0.50 2.2 24.0 0.801 500
300 1527.50 2.4 27.0 0.0641 585

# Current carrying capacity as per IS 3961 Part V – 1968.
Also available in HR-85, HR-FR, FR, FR-LSH & ZHFR Insulations, as per Indian & International Standards.

Standard Colors : Red, Yellow, Blue, Black & Green (for earthing)

The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
