Travelling Cables

High-Quality Travelling Cables Manufacturer | Durable & Reliable Solutions

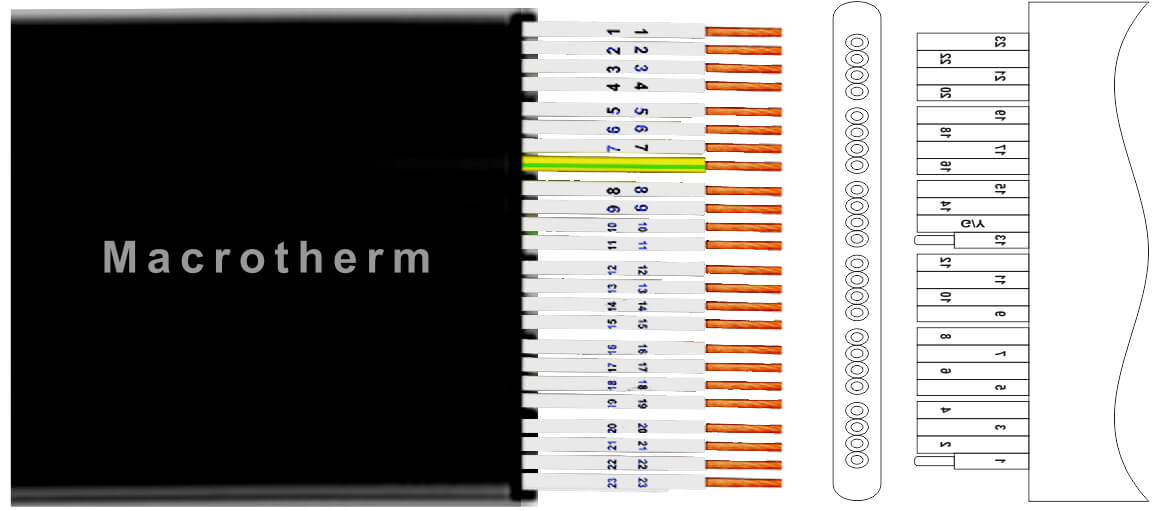

FLAT TRAVELLING CABLES;
RATED VOLTAGE 300/500 V, LOW RISE; H05VVH6-F
PRODUCT DESCRIPTION

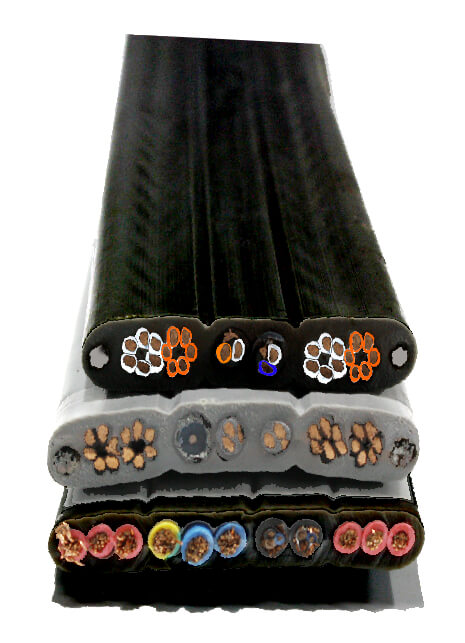

Flat Traveling Cables, made up of electrolytic copper conductor, which provide an electric connection between an Elevator & dumbwaiter car, and a fixed electrical outlet in the hoist way.

APPLICATION

Elevator Suspension Cable for Internal & Panoramic Elevators

APPLICABLE STANDARD

EN 50214, IEC 60227-6

CONSTRUCTION
CONDUCTOR
Flexible Class 5 bright annealed bare copper conductor, manufactured from 99.97% pure electrolytic grade copper, with more than 100% conductivity, as per IEC 60228
INSULATION
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirements of Type ‘D’ as per IEC 60227-2
CORE INDENTIFICATION
White Insulated Cores printed with numerals & one Y/G for Ground
GROUPING
Normal Type - Cores laid parallel in groups, with each group having a rip cord,

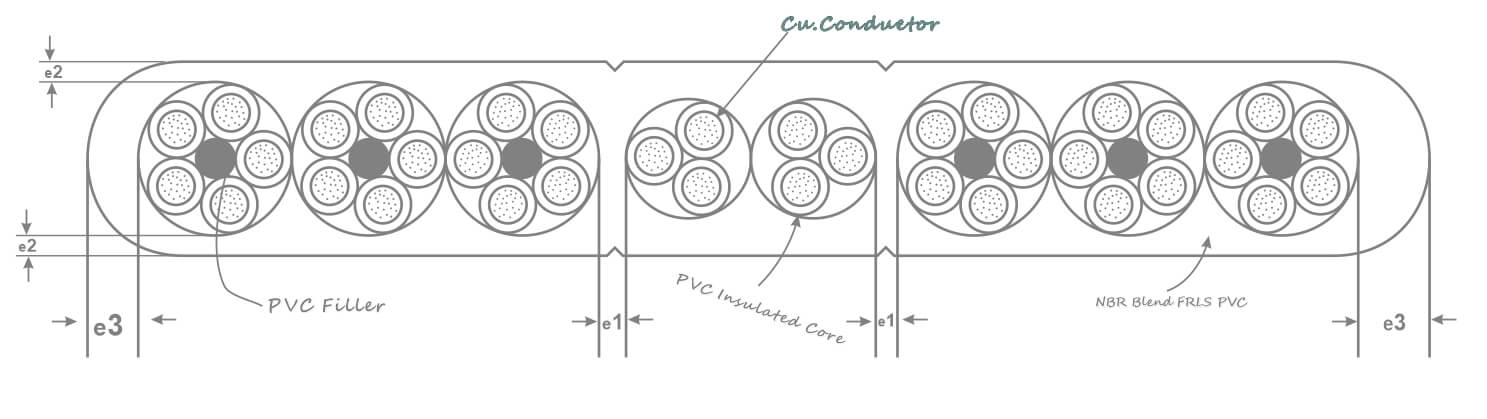

Bundle Type - Cores twisted together to form bundles. Such bundles laid parallel in groups, with each group having a rip cord &
Composite Type - Shielded data elements laid parallel with each group having a rip cord.
OUTER SHEATH
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirements of Type ‘ST 5’, as per IEC 60227-2, in black color
MECHANICAL PROPERTIES
FREE SUSPENSION LENGTH
45 Meters (Max.)
TRAVELLLING HEIGHT
80 Meters (Max.)
RUNNING SPEED
4 Meters. / Second (Max.)
ACCELERATION
< 0.8 Meters / Second2
OPERATING TEMP.
Mobile Utilization - 5°C ~ +70 °C
Fixed Utilization -10°C ~ +70 °C
BENDING RADIUS
Cable Thickness (h) x 10 (Min.)
RECOMMENDED LOOP DIA.
300 mm ± 50 mm
IR CONSTANT at 270C
36.7 M Ω Km
FLAME RETARDANCE
IEC 60332-1
SHEATH MARKING
dd/mm/yy MACROTHERM < H05VVH6-F > nGx.xx CE sequential metric
ELECTRICAL PROPERTIES
RATED VOLTAGE
Control cores and earthing conductor:
≤ 1 mm2 : 300/500 V
Data element : 300 V
TEST VOLTAGE
Control cores and earthing conductor:
≤ 1 mm2 : 2 kV (rms) / 15 minutes
Data element : Core to core 1.5 k V (rms) & Core to Shield 800 V (rms).

0.50 ~ 1.0 mm2 – Annealed bare Cu Cond., Special elastomeric blend PVC Insulated & Sheathed Flat Travelling Cable; 300/500 V

AREA
mm2		 CONST.
NOS. – SIZE		 MAX. CR at 20oC
Ω/Km		 APPROX. DIAMETER H * W (MM)
4C 5C 6C 12C 16C 18C 20C 24C
0.50 16/0.20 39.00 3.95 * 12.30 3.95 * 15.50 3.95 * 16.40 3.95 * 30.10 3.95 * 39.55 3.95 * 43.70 3.95 * 49.10 3.95 * 58.50
0.75 24/0.20 26.00 4.15 * 13.00 4.15 * 16.45 4.15 * 17.50 4.15 * 32.40 4.15 * 42.80 4.15 * 47.40 4.15 * 53.15 4.15 * 63.50
1.0 32/0.20 19.50 4.30 * 13.60 4.30 * 17.20 4.30 * 18.40 4.30 * 34.10 4.30 * 45.05 4.30 * 49.95 4.30 * 56.15 4.30 * 67.15

0.75 ~ 1.0 mm2 ; Bundle Type - Annealed bare Cu Cond., Special elastomeric blend PVC Insulated & Sheathed Bundle Type Flat Travelling Cable; 300/500 V

AREA
mm2		 CONST.
NOS. – SIZE		 MAX. CR at 20oC
Ω/Km		 APPROX. DIAMETER H * W (MM)
30C 36C 40C 48C
0.75 24/0.20 26.00 9.20 * 43.20 9.20 * 55.30 9.20 * 56.60 9.20 * 68.05
1.0 32/0.20 19.50 9.80 * 47.10 9.80 * 58.30 9.80 * 60.80 9.80 * 73.10

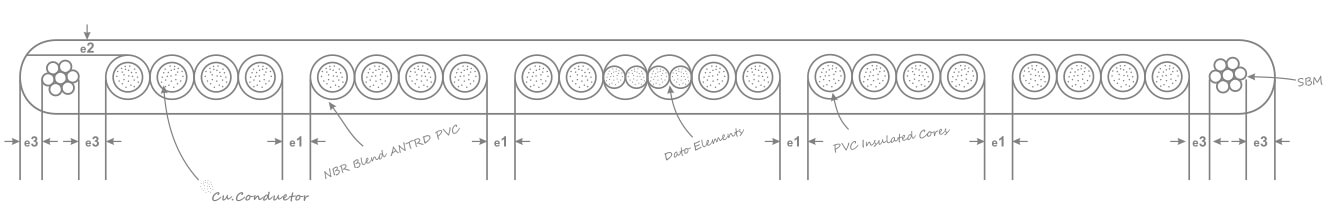

0.75 mm2; Composite - Annealed bare Cu Cond., Special elastomeric blend PVC Insulated & Sheathed Composite Flat Travelling Cable with shielded data elements; 300/500 V

AREA
mm2		 CONST.
NOS. – SIZE		 MAX. CR at 20oC
Ω/Km		 APPROX. DIAMETER H * W (MM)
2C*0.75 + 1P*0.50 10C*0.75 + 2P*0.5 20C*0.75 + 2P*0.5 22C*0.75 + 2P*0.5 24C*0.75 + 2P*0.5 36C*0.75 + 2P*0.75 + Cat6E
0.75 24/0.20 26.00 5.80 * 12.50 5.80 * 35.45 5.80 * 60.00 5.80 * 61.40 5.80 * 71.60 9.40 * 63.60

Note: Shielded data element 0.50 mm2, MAX. CR at 200C 39 Ω/Km.
    Data element PE Insulated and twisted pair, shielding of AL Mylar tape with ATC drain wire.

The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.

FLAT TRAVELLING CABLES;
RATED VOLTAGE 450/750 V; H07VVH6-F
PRODUCT DESCRIPTION

Flat Traveling Cables, made up of electrolytic copper conductor, which provide an electric connection between an Elevator & dumbwaiter car, and a fixed electrical outlet in the hoist way.

APPLICATION

Elevator Suspension Cable for Internal & Panoramic Elevators

APPLICABLE STANDARD

EN 50214, IEC 60227-6

CONSTRUCTION
CONDUCTOR
Flexible Class 5 bright annealed bare copper conductor, manufactured from 99.97% pure electrolytic grade copper, with more than 100% conductivity, as per IEC 60228
INSULATION
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirements of Type ‘D’ as per IEC 60227-2
CORE INDENTIFICATION
White Insulated Cores printed with numerals & one Y/G for Ground
GROUPING
Structured parallel lay with each group having a rip cord & Steel Rope strength member on request - For High Rise Application
OUTER SHEATH
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirements of Type ‘ST 5’ as per IEC 60227-2, in black color
MECHANICAL PROPERTIES
FREE SUSPENSION LENGTH
45 Meters (Max.)
TRAVELLLING HEIGHT
80 Meters (Max.)
RUNNING SPEED
4 Meters. / Second (Max.)
ACCELERATION
< 0.8 Meters / Second2
OPERATING TEMP.
Mobile Utilization - 5°C ~ +70 °C
Fixed Utilization -10°C ~ +70 °C
BENDING RADIUS
Cable Thickness (h) x 10 (Min.)
RECOMMENDED LOOP DIA.
300 mm ± 50 mm
IR CONSTANT at 270C
36.7 M Ω Km
FLAME RETARDANCE
IEC 60332-1
SHEATH MARKING
dd/mm/yy MACROTHERM < H07VVH6-F > nGx.xx CE sequential metric marking
ELECTRICAL PROPERTIES
RATED VOLTAGE
Control cores and earthing conductor:
≥ 1.5 mm2 : 450/750 V
Data element : 300 V
TEST VOLTAGE
Control cores and earthing conductor:
≥ 1.5 mm2 : 2.5 kV (rms) / 15 minutes
Data element : Core to core 1.5 k V (rms) & Core to Shield 800 V (rms).

1.5 ~ 2.5 mm2 – Annealed bare Cu Cond., Special elastomeric blend PVC Insulated & Sheathed Flat Travelling Cable; 450/750 V

AREA
mm2		 CONST.
NOS. – SIZE		 MAX. CR at 20oC
Ω/Km		 APPROX. DIAMETER H * W (MM)
4C 5C 6C 12C 16C 18C 20C 24C
1.5 48/0.20 13.30 4.95 * 15.50 4.95 * 19.60 4.95 * 21.25 4.95 * 39.85 4.95 * 52.75 4.95 * 58.70 4.95 * 65.75 4.95 * 78.45
2.5 80/0.20 7.98 5.65 * 19.25 5.65 * 24.50 5.65 * 26.20 5.65 * 49.50 5.65 * 65.50 5.65 * 72.50 5.65 * 81.40 5.65 * 97.30

4 ~ 25 mm2 - Annealed bare Cu Cond., Special elastomeric blend PVC Insulated & Sheathed Flat Travelling Cable; 450/750 V

AREA
mm2		 CONST.
NOS. – SIZE		 MAX. CR at 20oC
Ω/Km		 APPROX. DIAMETER H * W (MM)
3C 4C
4 56/0.30 4.95 6.55 * 15.75 6.55 * 21.30
6 84/0.30 3.30 7.10 * 17.35 7.10 * 23.45
10 140/0.30 1.91 8.95 * 21.65 8.95 * 29.15
16 128/0.40 1.21 10.25 * 25.40 10.25 * 34.00
25 196/0.40 0.780 12.10 * 30.25 12.10 * 40.50

The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.

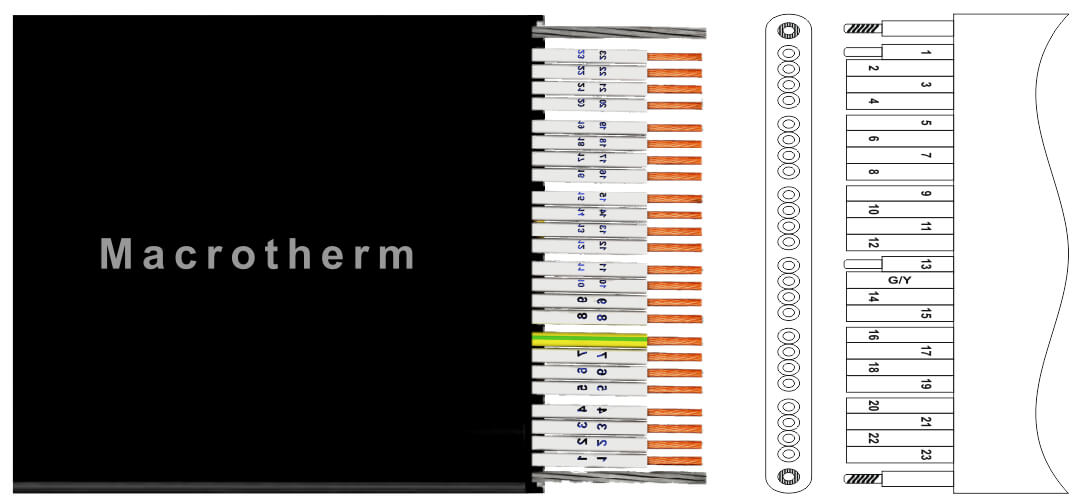

FLAT TRAVELLING CABLES WITH STRAIN BEARING MEMBERS (s.b.m);
H05VVD3H6-F
PRODUCT DESCRIPTION

Flat Traveling Cables, made up of electrolytic copper conductor, which provide an electric connection between an Elevator / dumbwaiter car, and a fixed electrical outlet in the hoist way.

APPLICATION

Elevator Suspension Cable for Internal and Panoramic Elevators

APPLICABLE STANDARD

IEC 60227-6, EN 50214

CONSTRUCTION
CONDUCTOR
Flexible bright annealed bare copper conductor Class 5, manufactured using 99.97% pure electrolytic grade copper, with more than 100% conductivity, as per IEC 60228
INSULATION
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirement of Type D as per IEC 60227-2
CORE INDENTIFICATION
White Insulated Cores printed with numerals & one Y/G for Ground
STRAIN-BEARING MEMBERS
Steel Rope
GROUPING
Structured parallel lay with each group having a rip cord & Steel Rope strength member for Mid/High rise application.
OUTER SHEATH
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation, meeting the requirement of Type ST 5 as per IEC 60227-2, in black color
MECHANICAL PROPERTIES
FREE SUSPENSION LENGTH
120 Meters (Max.)
TRAVELLLING HEIGHT
150 Meters (Max.)
RUNNING SPEED
6.3 Meters / Second (Max.)
ACCELERATION
< 0.8 Meters / Second2
OPERATING TEMP.
Mobile Utilization - 5°C ~ +70 °C
Fixed Utilization -10°C ~ +70 °C
BENDING RADIUS
Cable Thickness (h) x 10
RECOMMENDED LOOP DIA.
400 mm ± 50 mm
IR CONSTANT at 270C
36.7 M Ω Km
FLAME RETARDANCE
IEC 60332-1
SHEATH MARKING
dd/mm/yy MACROTHERM < H05VVD3H6-F > nGx.xx CE sequential metric
ELECTRICAL PROPERTIES
RATED VOLTAGE
Control cores and earthing conductor:
≤ 1 mm2 : 300/500 V
≥ 1.5 mm2 : 450/750 V
Data element : 300 V
TEST VOLTAGE
Control cores and earthing conductor:
≤ 1 mm2 : 2 kV (rms) / 15 minutes
≥ 1.5 mm2 : 2.5 kV (rms) / 15 minutes
Data element : Core to core 1.5 k V (rms) & Core to Shield 800 V (rms).

0.75 ~ 1.0 mm2-sbm – Annealed bare Cu Cond., Special elastomeric blend PVC Insulated & Sheathed Flat Travelling Cable; 300/500 V

AREA
mm2		 CONST.
NOS. – SIZE		 MAX. CR at 20oC
Ω/Km		 APPROX. DIAMETER H * W (MM)
12C 16C 24C
0.75 24/0.20 26.00 4.40 * 40.80 4.40 * 51.10 4.40 * 71.50
1.0 32/0.20 19.50 4.40 * 43.20 4.40 * 54.35 4.40 * 76.30

The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
