Underground Feeder Cables are special type of cables designed for direct burial, to be run in a trench, without the use of conduit pipes, used for all kinds of irrigation systems, golf courses & sprinkler systems. These cables are manufactured keeping in mind protection against rainwater & against ingress of small solid foreign bodies.
CONTROL VALVE/BRANCH CIRCUIT CONTROL CABLES
- These Cables are produced from best quality electrolytic copper, drawn, annealed on-line, on automatic machines, to ensure uniform resistance, as per IS:8130 Class 1 & ASTM-B3
- Co-extruded Insulation with special grade PVC Type ‘B’ & generally as per UL Standard 493, for better electrical properties
- Temp. Rating - 10oC ~ 75oC
Online wire drawing with annealing
Co-extruded PVC Insulation, for better Insulation & Electrical properties
Online High Voltage Spark Testing, ensuring no weak spots
Automatic on-line critical diameter control
Stringent Quality Control

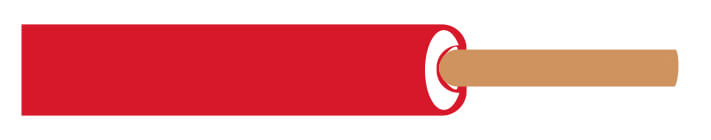

Solid bare Copper Cond., Type-B PVC Insulated UF Cable for direct burial; 600 V
| NO. OF CORES | CONDUCTOR | INSULATION | MAX. CR at 20oC Ω/Km |
|||
|---|---|---|---|---|---|---|
| AREA | CONSTRUCTION | THICKNESS mm |
DIA. mm |
|||
| AWG | mm2 | Nos. – Size | ||||
| 1 | 18 | 0.82 | 1/1.04 | 1.70 | 4.45 | 21.67 |
| 1 | 16 | 1.31 | 1/1.29 | 1.70 | 4.70 | 13.42 |
| 1 | 14 | 2.08 | 1/1.63 | 1.70 | 5.00 | 8.44 |
| 1 | 12 | 3.31 | 1/2.05 | 1.70 | 5.45 | 5.31 |
Standard Colors : White, Red, Blue, Brown, Grey, Black & Green (for earthing)
Packing : Supplied in 500 / 762 meter coils

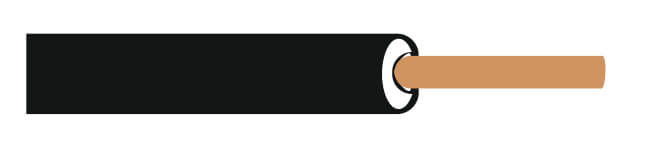

Solid bare Copper Cond., Type ‘B’ PVC Insulated UF Cable for direct burial; 1100 V
| NO. OF CORES | CONDUCTOR | INSULATION | MAX. CR at 20oC Ω/Km |
||
|---|---|---|---|---|---|
| AREA mm2 |
CONSTRUCTION Nos. – Size |
THICKNESS mm |
DIA. mm |
||
| 1 | 1 | 1/1.12 | 1.70 | 4.50 | 18.10 |
| 1 | 1.50 | 1/1.38 | 1.70 | 4.75 | 12.10 |
| 1 | 2 | 1/1.60 | 1.70 | 5.00 | 9.26 |
| 1 | 2.5 | 1/1.78 | 1.70 | 5.15 | 7.41 |
| 1 | 4 | 1/2.24 | 1.70 | 5.65 | 4.61 |
Standard Colors : White, Red, Blue, Brown, Grey, Black & Green (for earthing)
Packing : Supplied in 500 / 762 meter coils
The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
- Produced from best quality electrolytic copper, drawn & annealed on-line, on automatic machines, to ensure uniform resistance, as per IS:8130 Class 1 & ASTM-B3
- Co-extruded Insulation with special grade PVC Type ‘B’ & generally as per UL Standard 493, for better electrical properties
- Two cores laid parallel
- Outer Sheathed with UV & abrasion resistance PE, confirming to ASTM D-1248, Type 3, Class 5, Grades E4 & E5, which is impervious to grease, oil & water etc.
- Temp. Rating - 10oC ~ 75oC
Solid bare Copper Cond., Type-B PVC Insulated & UV Stabilized PE Sheathed UF Cable for direct burial; Voltage Grade Up to 600
| NO. OF CORES | CONDUCTOR | INSULATION | SHEATH | MAX. CR at 20oC Ω/Km |
||||
|---|---|---|---|---|---|---|---|---|
| AREA | CONSTRUCTION | THICKNESS mm |
DIA. mm |
THICKNESS mm |
DIA. (h*w) mm |
|||
| AWG | mm2 | Nos. – Size | ||||||
| 2 | 16 | 1.31 | 1/1.29 | 1.60 | 4.50 | 1.20 | 6.90 * 11.45 | 13.42 |
| 2 | 14 | 2.08 | 1/1.63 | 1.60 | 4.80 | 1.20 | 7.20 * 12.05 | 8.44 |
Standard Sheath Colors : Red & Blue
Packing : Supplied in 500 / 762 meter wooden drums
The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.

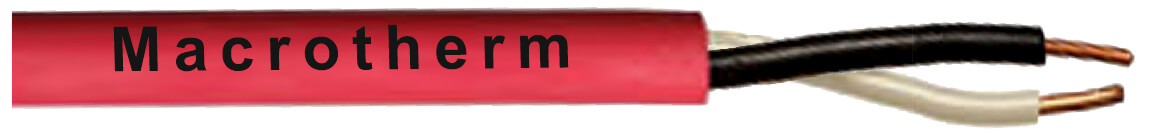

- Jacketed cables containing two Golf Course Sprinkler wires, single conductor, suitable for direct burial, for operation up to 600 volts, and temperatures up to 60°C.
- Produced from best quality electrolytic copper, drawn & annealed on-line on automatic machines, to ensure uniform resistance, as per IS:8130 Class 1 & ASTM-B3
- Co-extruded Insulation with special grade PVC Type ‘B’ & generally as per UL Standard 493, for better electrical properties
- Two cores twisted with lay length of Approx. 100 mm.
- An optional Mylar tape may be used over the cores.
- A rip cord shall be placed directly below the outer jacket.
- Outer Sheathed with UV & abrasion resistance PE confirming to ASTM D-1248, Type 3, Class 5, Grades E4 & E5 , which is impervious to grease, oil & water etc.
- Temp. Rating - 10oC ~ 75oC
Solid bare Copper Cond., Type-B PVC Insulated & UV Stabilized PE Sheathed UF Cable for direct burial; Voltage Grade Up to 600
| NO. OF CORES | CONDUCTOR | INSULATION | SHEATH | MAX. CR at 20oC Ω/Km |
||||
|---|---|---|---|---|---|---|---|---|
| AREA | CONSTRUCTION | THICKNESS mm |
DIA. mm |
THICKNESS mm |
DIA. (h*w) mm |
|||
| AWG | mm2 | Nos. – Size | ||||||
| 2 | 16 | 1.31 | 1/1.29 | 1.20 | 3.70 | 0.90 | 9.20 | 13.42 |
| 2 | 14 | 2.08 | 1/1.63 | 1.20 | 4.05 | 0.90 | 9.90 | 8.44 |
Standard Sheath Colors : Red & Blue
Packing : Supplied in 500 / 762 meter wooden drums
The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
Temp. changes cause Cables to expand & contract as much as 1% of the length, and High Voltage Power lines create a lot of electromagnetic fields which cause interference & corrupt signals in communication lines. So, it is necessary to take certain precautions when installing these products.
Cables carrying up to 30 volts should be installed at a min. burial depth of 6”. If mechanical equipment’s, such as aerifiers & shovels, are expected to disturb the area, then the cables should be installed at min. depth of 12”. For cable carrying more than 30, and less than 600 volts, the min. burial depth should be 24”
When installing cables in a trench, they must be snaked so that some slack is created. At points along the trench where there are sharp bends, a loop of 12” ~ 24” should be created, to allow shrinkage. When communication cables are in the same trench as power wires, there should be a min.12” separation between them.
Wire splices are weak links of any electrical circuit. It’s important to make proper joints in irrigation systems, as the joints are exposed to wet/damp environments, which can cause corrosion of copper conductor, and premature failure.
