MACROTHERM ELEVATOR Balance Compensation Chain
PRODUCT DESCRIPTION

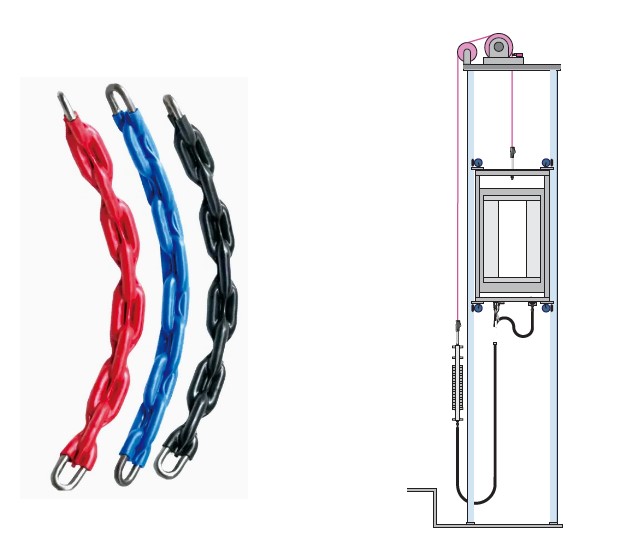

PVC Insulated Elevator balance compensating chain, crafted from special anti-rust treated anchor chain, insulated with specially formulated PVC with a blend of elastomer for continuous flexing operation which is fire-resistant, wear-resistant, noise-resistant, anti-aging, and not vulnerable to being split out.
APPLICATION
Elevator Compensating chain Cable for High rise Panoramic Elevators
CONSTRUCTION
MS CHAIN
GRADE 3, MS wire rod confirming to IS 7887, used for Compensating chain.
INSULATION
Specially formulated PVC with a blend of Elastomer, for continuous flexing operation.
COLOUR
Red, Black & Blue.
MECHANICAL PROPERTIES
| SIZE mm |
UNIT WT. (Kg/m) |
Minimum Bending Dia. (mm) |
Breaking Load (≥ KN) |
Maximum Length (m) |
|---|---|---|---|---|
| Φ 6 | 0.86 ± 0.2 | 260 | 18.6 | 180 |
| Φ 7 | 1.25 ± 0.2 | 260 | 25.2 | 185 |
| Φ 8 | 1.50 ± 0.2 | 260 | 33.0 | 190 |
| Φ 10 | 2.25 ± 0.2 | 280 | 51.6 | 230 |
| Φ 12 | 3.25 ± 0.2 | 300 | 72.5 | 240 |
The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
