MACROTHERM 3 CORE FLAT CABLES FOR SUBMERSIBLE PUMPS & MOTORS
3 Core Flat Submersible Cables used to connect underwater submersible pump-sets with the supply lines, used in Agriculture, Irrigation, Domestic installation & Outdoor applications viz. Firefighting, Mining & dewatering, Sea water handling & sewage treatment plants. These cables are manufactured keeping in mind the critical space requirement, protection towards indefinite immersion in water under specified conditions, protection against rainwater & against ingress of small solid foreign bodies.
IS 694:2010, BS:6500.
Online wire drawing with annealing of 99.97% pure electrolytic grade copper rods
Co-extruded PVC Insulation, for better Insulation & Electrical properties
Online High Voltage Spark Testing, ensures no weak spots in wires
Automatic on-line critical diameter control
Stringent Quality Control
ISI marked cables meeting the requirements of IS: 694 - 2010

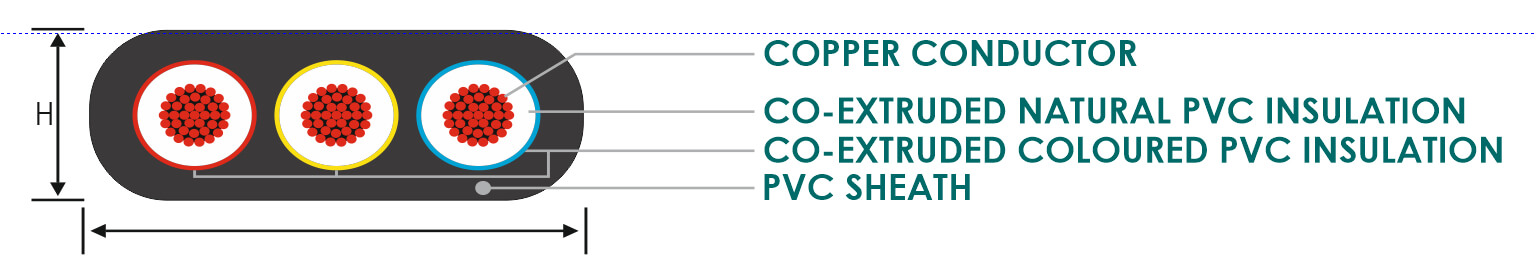

Annealed Bare Copper Conductor, Type-A PVC Insulated & ST1 PVC Sheathed 3 Core Flat Submersible Cable; 1100 V Grade as per IS 694 : 2010.
| NO. OF CORES |
CONDUCTOR | INSULATION | SHEATH | MAX. CR at 20oC Ω/Km |
Current Carrying Capacity Amps |
HP | |||
|---|---|---|---|---|---|---|---|---|---|
| AREA mm2 |
CONSTRUCTION Nos. - Size |
THICKNESS mm |
DIA. mm |
THICKNESS mm |
DIAMETER H * W mm |
||||
| 3 | 1.5 | 30/0.25 | 0.6 | 2.7 | 0.9 | 4.6 * 10.0 | 13.3 | 16 | 5 |
| 3 | 2.5 | 50/0.25 | 0.7 | 3.4 | 1.0 | 5.5 * 12.5 | 7.98 | 22 | 7.5 |
| 3 | 4 | 56/0.30 | 0.8 | 4.0 | 1.0 | 6.2 * 14.1 | 4.95 | 29 | 15 |
| 3 | 6 | 84/0.30 | 0.8 | 4.6 | 1.1 | 6.9 * 16.3 | 3.30 | 37 | 20 |
| 3 | 10 | 80/0.40 | 1.0 | 5.9 | 1.4 | 8.9 * 20.9 | 1.91 | 51 | 30 |
| 3 | 16 | 126/0.40 | 1.0 | 6.9 | 1.4 | 9.8 * 23.9 | 1.21 | 68 | 40 |
| 3 | 25 | 196/0.40 | 1.2 | 8.7 | 2.0 | 12.7 * 30.0 | 0.780 | 86 | 50 |
| 3 | 35 | 276/0.40 | 1.2 | 9.9 | 2.0 | 14.0 * 33.5 | 0.554 | 110 | 65 |
| 3 | 50 | 396/0.40 | 1.4 | 11.7 | 2.2 | 16.2 * 39.5 | 0.386 | 145 | 75 |
| 3 | 70 | 360/0.50 | 1.4 | 13.2 | 2.2 | 17.85 * 44.7 | 0.272 | 215 | 95 |
The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
| HP | 5 | 7.5 | 10 | 12.5 | 15.5 | 17.5 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Amps. | 7.5 | 11 | 14.9 | 18.9 | 22.5 | 25.2 | 28.4 | 35.6 | 42.3 | 50.4 | 58.1 | 62.1 | 67.5 | 73.8 | 81 | 87.3 | 93.6 | 101 | 108 |
| MOTOR RATING | 230 VOLTS (50 HZ) | |||||
|---|---|---|---|---|---|---|
| HP | 0.50 | 0.75 | 1.0 | 1.5 | 2.0 | 3.0 |
| KW | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 |
| CABLE SIZE | MAX. CABLE LENGTH THAT CAN BE USED (MTS.) | |||||
| 1.5 mm2 | 120 M | 80 M | 60 M | 40 M | 30 M | - |
| 2.5 mm2 | 200 M | 130 M | 100 M | 70 M | 60 M | 40 M |
| 4 mm2 | 320 M | 220 M | 170 M | 120 M | 90 M | 60 M |
| 6 mm2 | 480 M | 320 M | 150 M | 180 M | 130 M | 90 M |
| 10 mm2 | 810 M | 550 M | 430 M | 300 M | 230 M | 150 M |
| 16 mm2 | 1,200 M | 850 M | 870 M | 470 M | 360 M | 230 M |
| 25 mm2 | 1,900 M | 1,290 M | 1,010 M | 710 M | 550 M | 350 M |
| 35 mm2 | 2,590 M | 1,780 M | 1,380 M | 980 M | 760 M | 490 M |
| 50 mm2 | 3,580 M | 2,430 M | 1,910 M | 1,360 M | 1,060 M | 680 M |
| 70 mm2 | 4,770 M | 3,230 M | 2,550 M | 1,850 M | 1,440 M | 920 M |
The above data is indicative only and may be revised without prior intimation. Macrotherm will not be liable for any damages arising out of incorrect application of its products.
Fixed installation 6 * Overall diameter
Occasional 4 * Overall diameter
- Coiled Submersible cable should always be spread out before using, to avoid overheating during use
- Ensure proper joining of the cable in order to avoid failure & short circuit
- Proper care should be taken while inserting the cable in the bore well, to avoid damage of the Outer Sheath
